Product Parameters:
Item No.: M16A;
Material: brass/stainless steel/wood;
Color: as shown in the picture;
Overall size: 150*120*130mm;
Engine size: 80*78*100mm;
Wooden base size: 150*120*30mm;
Weight: 980g;
Displacement: 1.6CC;
Cylinder Diameter: 13mm;
Flywheel Diameter: 56mm;
Tank Capacity: 8mL;
Ignition power supply voltage: 4.5V (using 3 AA batteries, batteries not included);
Starting method: external force (electric drill) or hand-pulled start;
Fuel used: gasoline or aviation kerosene.
Product features:

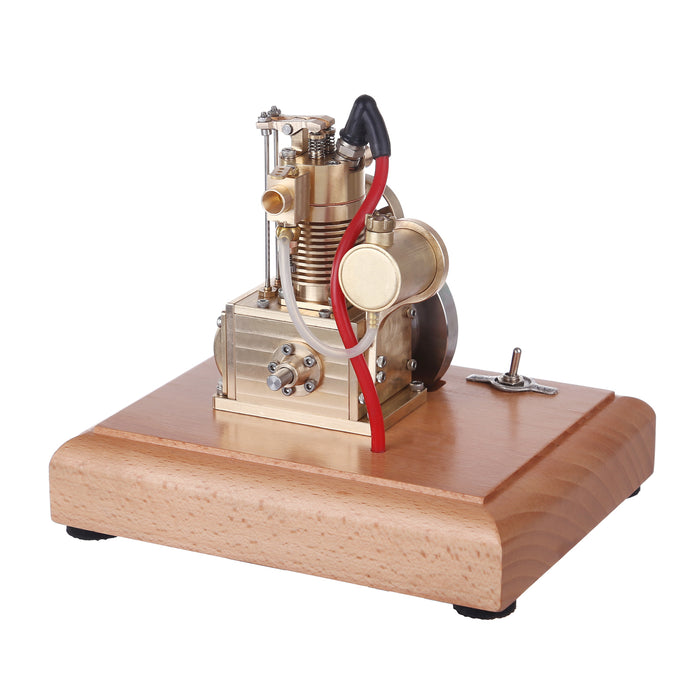

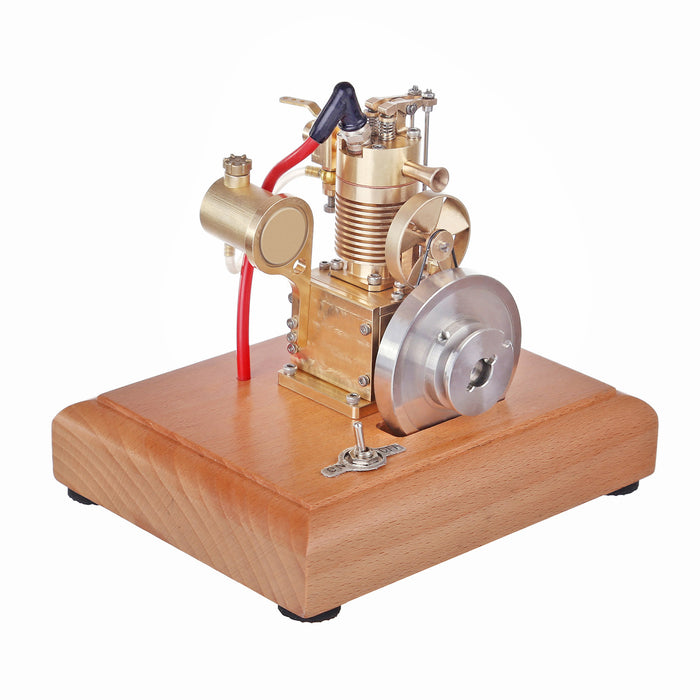

This is a miniature micro-engine with an air-air-cooled cooling structure, using a carburetor with adjustable speed. Carefully crafted from brass and stainless steel, it has a unique and exquisite shape, stable and reliable structural design, with a wooden base for easy placement and operation. You will love this retro and exquisite Mini gasoline engine model.
Engine Starting Steps:

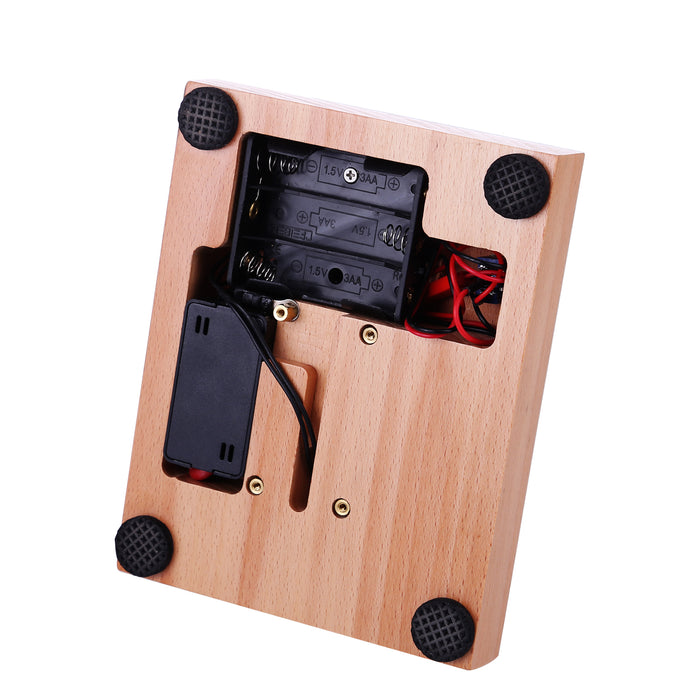

(1) Check the engine wiring from the wooden base, connect the fuel tank fuel line and install 3 AA batteries (4.5V);
(2) Fill the tank with 95 # gasoline, filling is complete, the flywheel on the right side of the engine (the surface of the power switch) clockwise rotation of a number of rounds, the role of which can be made to make the fuel mixture completely into the cylinder, to ensure that there is no air in the fuel line;
(3) Turn on the power switch and then turn the flywheel clockwise quickly to start the engine on the right side of the engine (power switch surface).
CAUTION:
(1) If the machine will not start properly with normal ignition and normal cylinder compression, the carburetor fuel needle will most likely need to be adjusted;
(2) After tightening the main oil needle on the carburetor, loosen it 1/4 turn and start the flywheel in order to bring the gasoline and air mixture ratio up to the normal operating mixture ratio;
(3) Turn off the power switch when the machine stops running.
Great Mechanical Crafts Gift:
This exquisite engine model is easy to operate and fun to observe and understand the working process and principles of the engine, as a desktop model to play with, but also as a great personalized gift for mechanical crafts modelers. If you have any questions, please contact us in time, we will solve your worries.
Applicable age:
14 years old and above;
Packing list:
engine*1
hand puller*1
instructions*1
