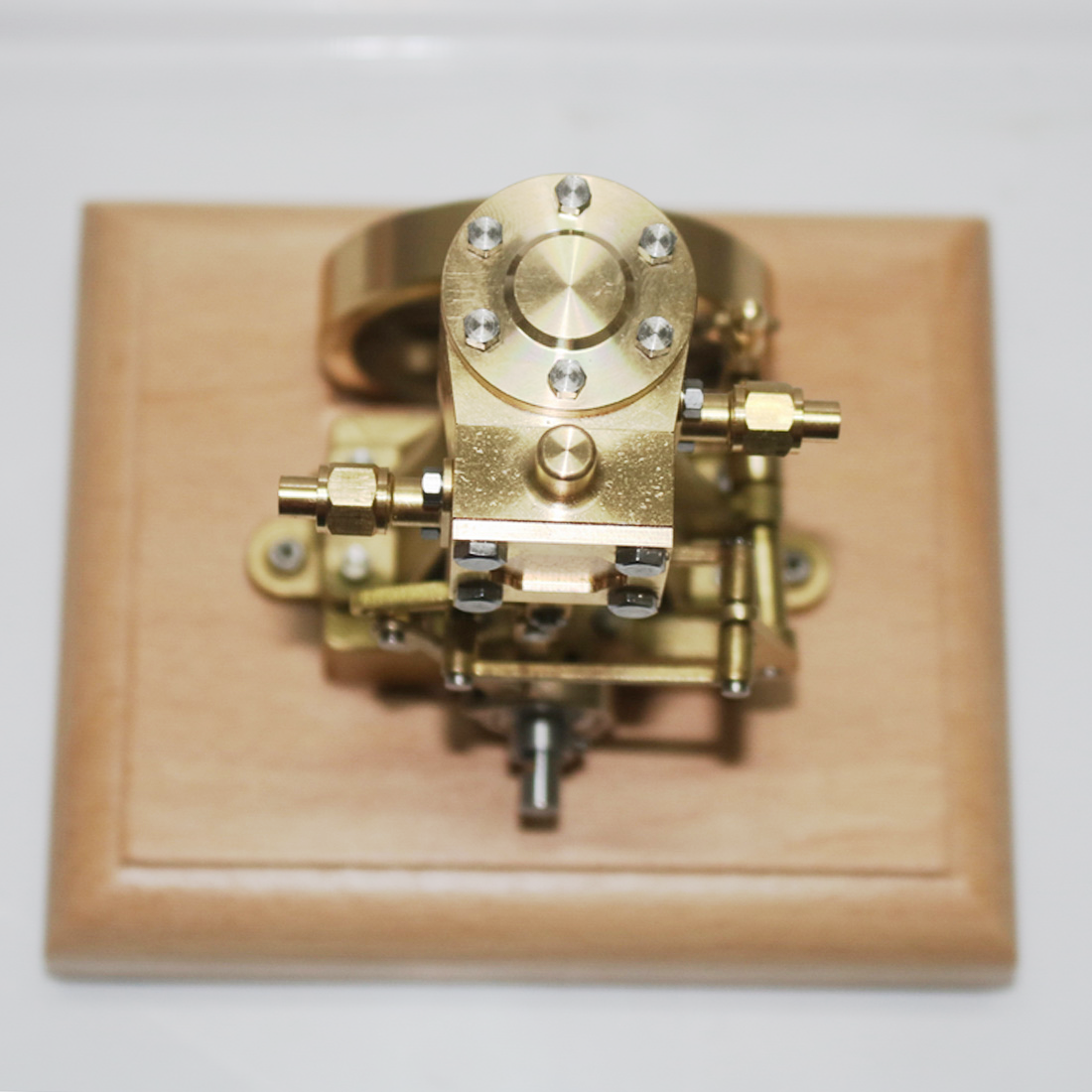

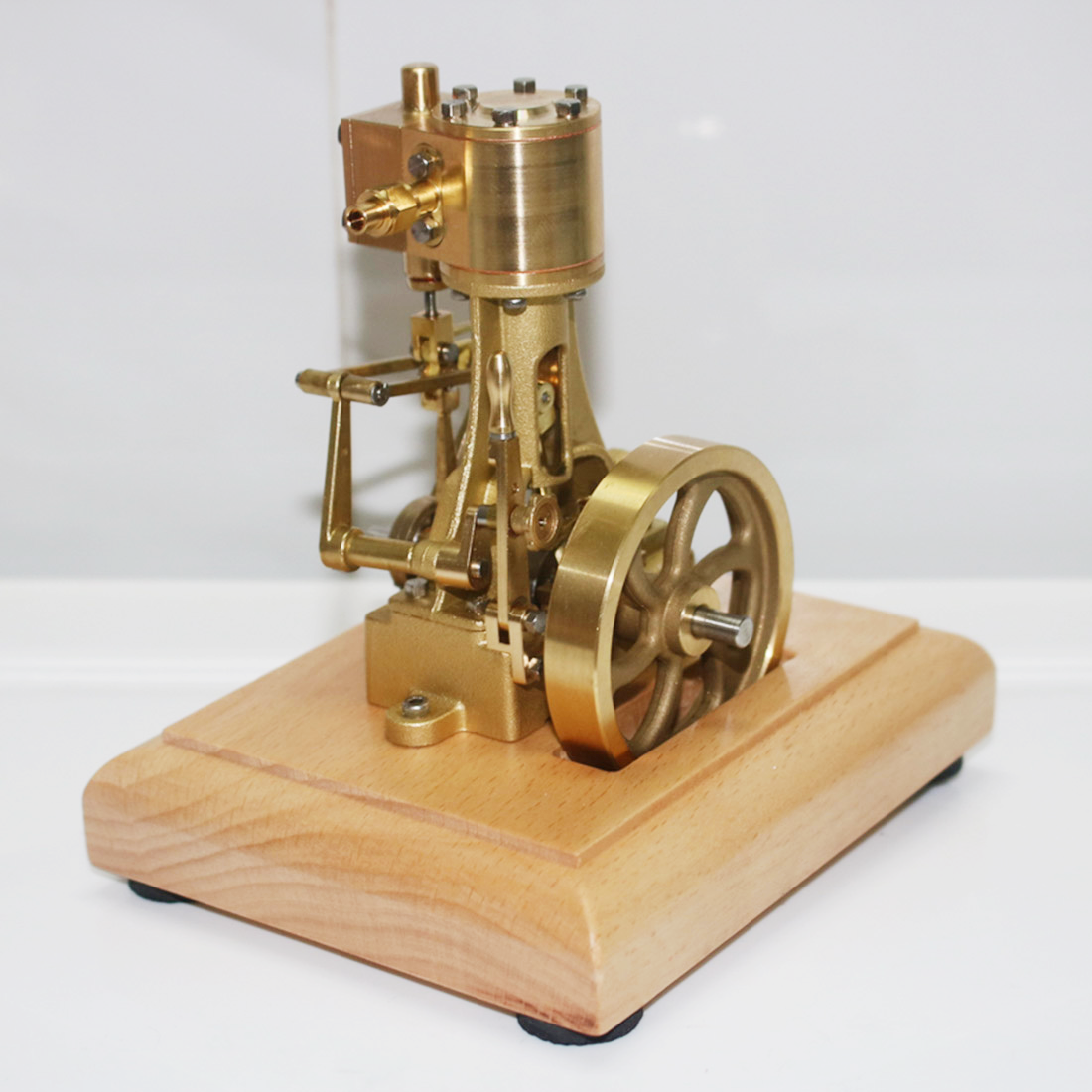

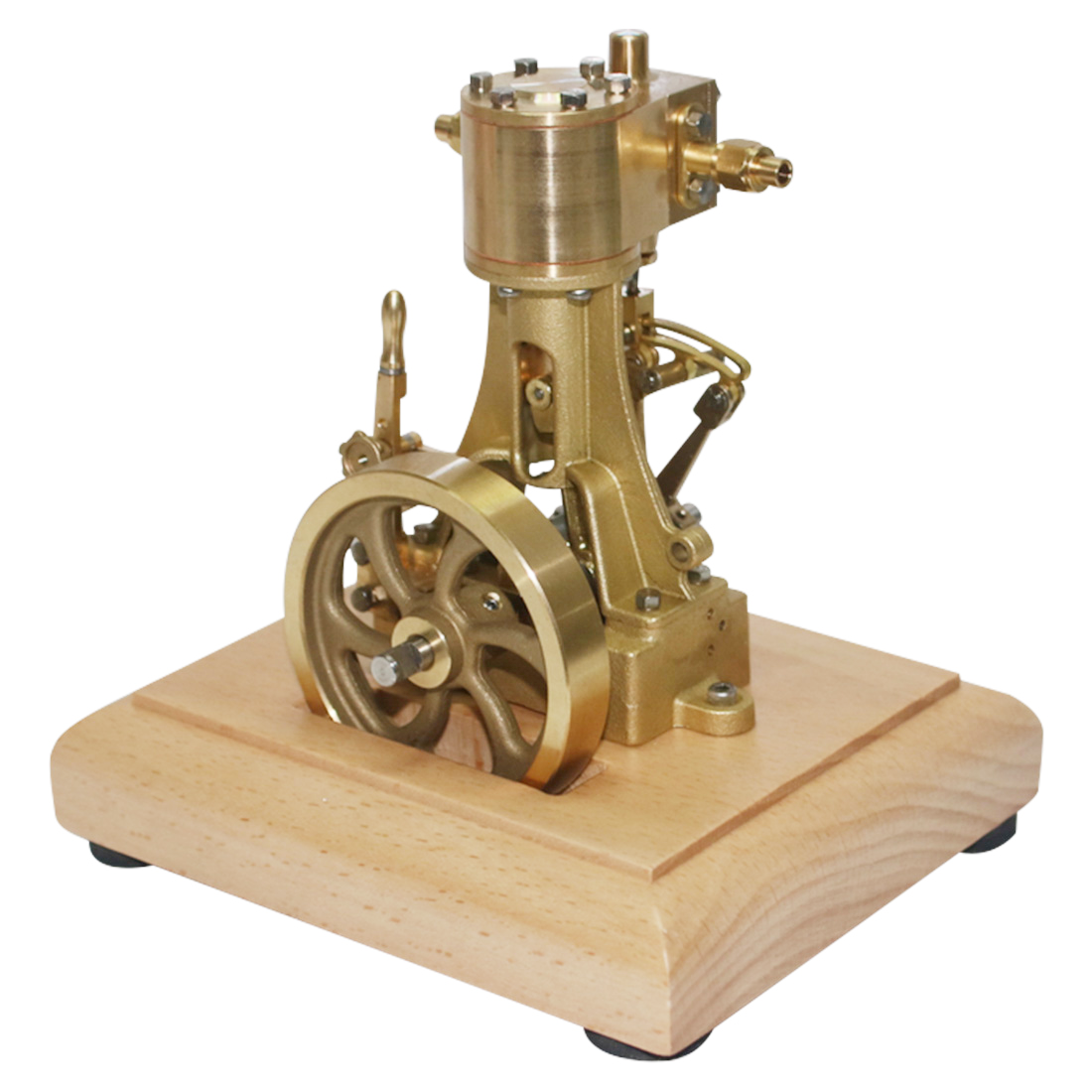

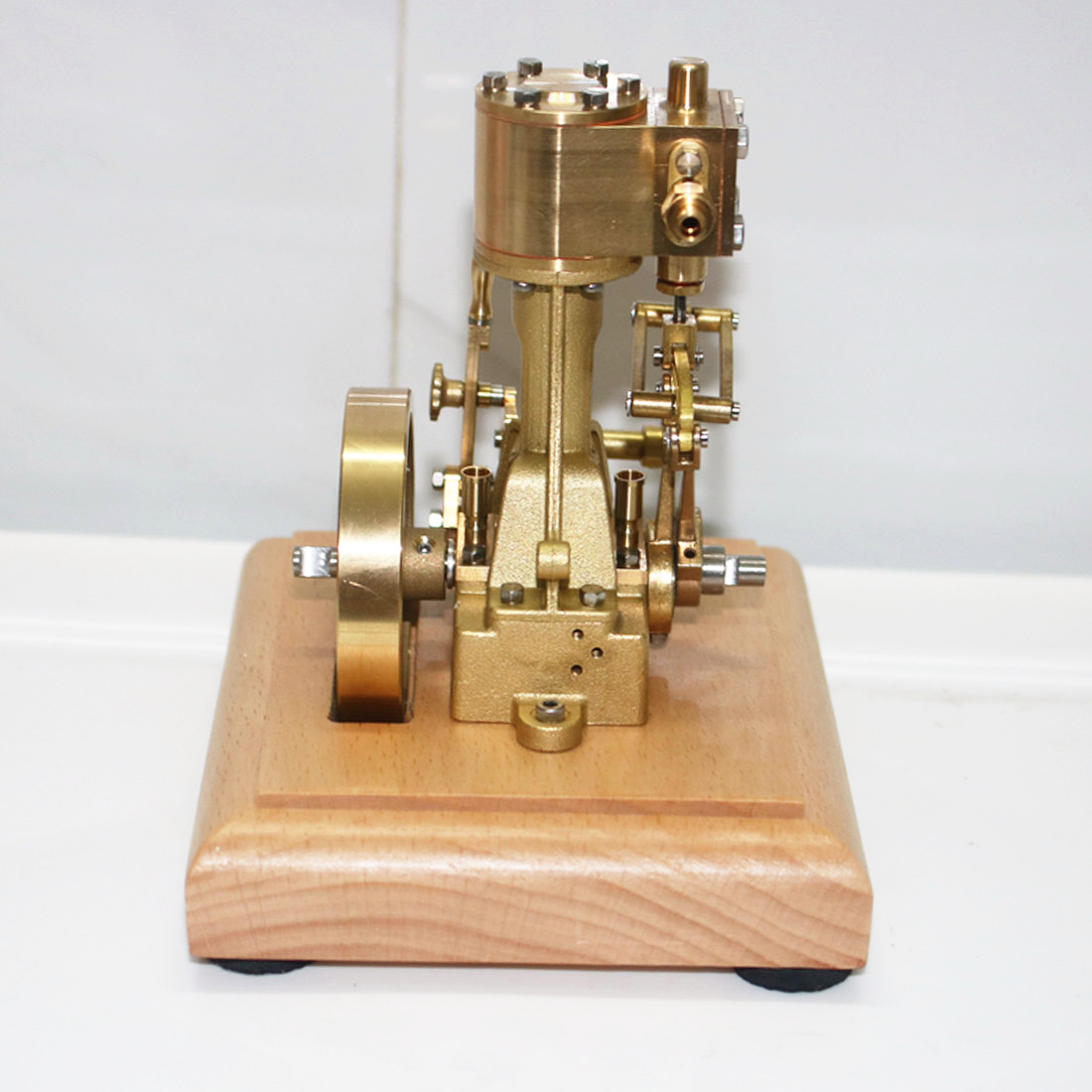

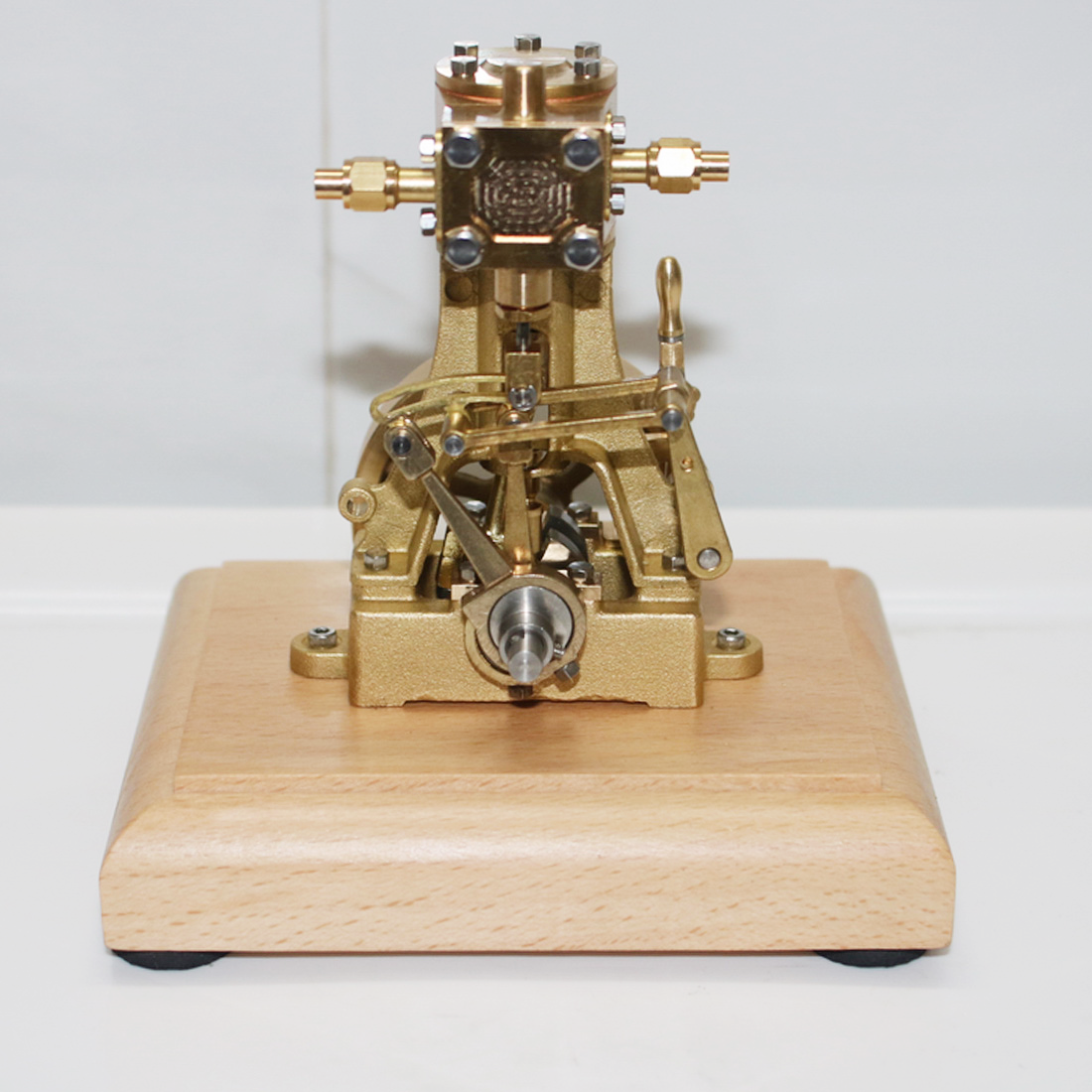

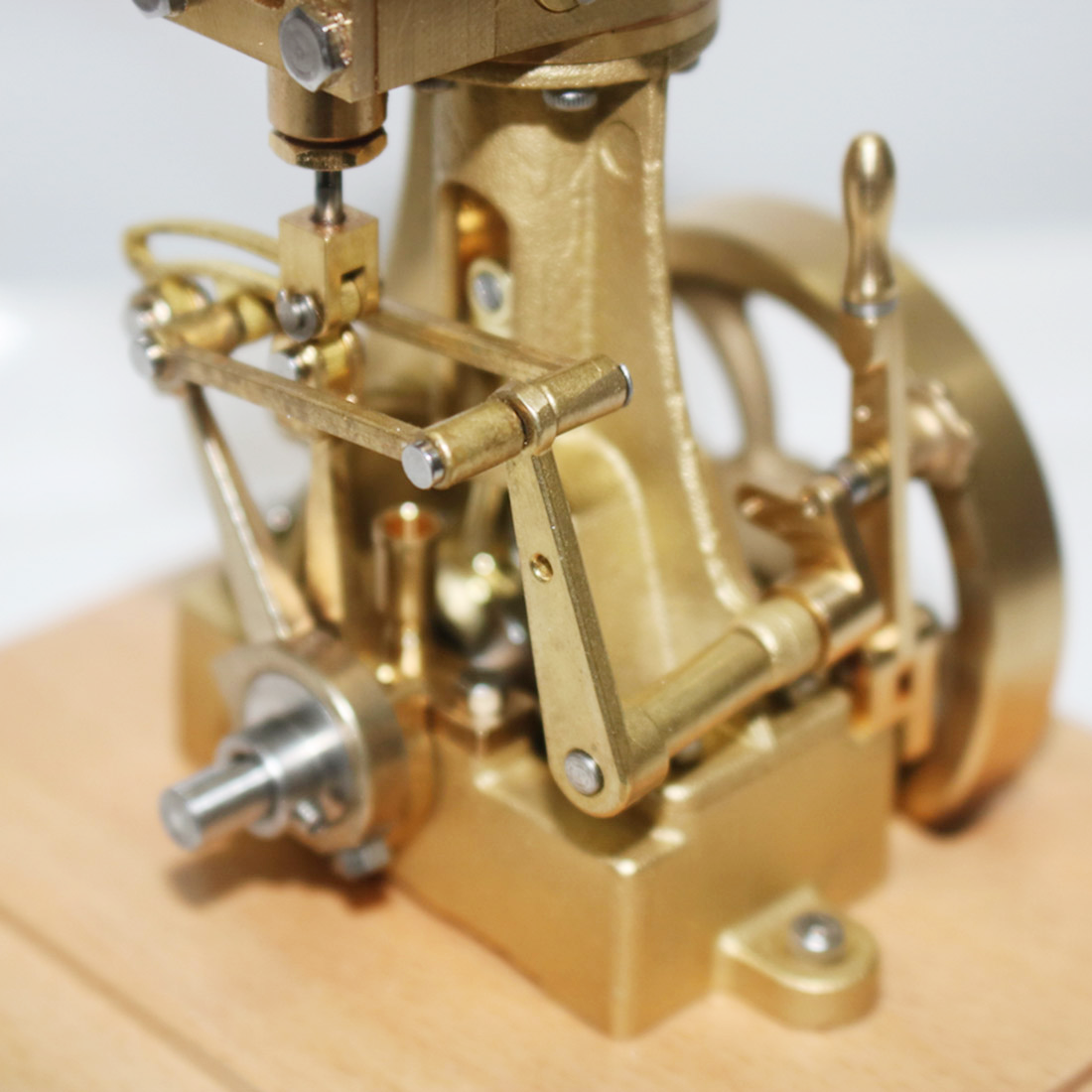

1.85CC Mini Retro Vertical Single-cylinder Reciprocating Double-acting Steam Engine Model Toys
.The exquisite and compact steam model is easy to install and play with in your hands, making you hardly tear yourself away from it.
.Mainly made of brass and processed by CNC machining, the premium quality model boasts rich-in-luster, delicate and aesthetic surface for fine production, sophisticated technology and smooth operation. The main shaft sleeve adopts abrasion-resistant beryllium brass with high hardness to ensure long-term running.
.Easy to operate without fussiness, the installed steam engine with boiler allows the users to intuitively feel the charm of the steam engine.
.Suitable for steam engine enthusiasts, the engine model with considerable operability is able to exercise hands-on ability and teach children or students about the operation of steam engines.
.Walk through the working principle of the steam model more intuitively through operating it, which boasts an extremely valuable collection for both production technology and appearance.
.Instructions: 1. The steam engine is a reciprocating power machine that converts the energy of steam into mechanical work.
2. Lubricating oil should be dropped at each friction point of the nose before operation. Add water into the boiler and heat it until it boils. Then gently twirl the flywheel until it runs automatically. (If getting stuck, maybe 1, the pressure is insufficient; 2, cylinder and piston lubrication are not enough; 3, the cylinder and piston running is not in place.)
3. The boiler is not included, please prepare or purchase by yourself. You can also consult us to buy matching boilers.Specifications:

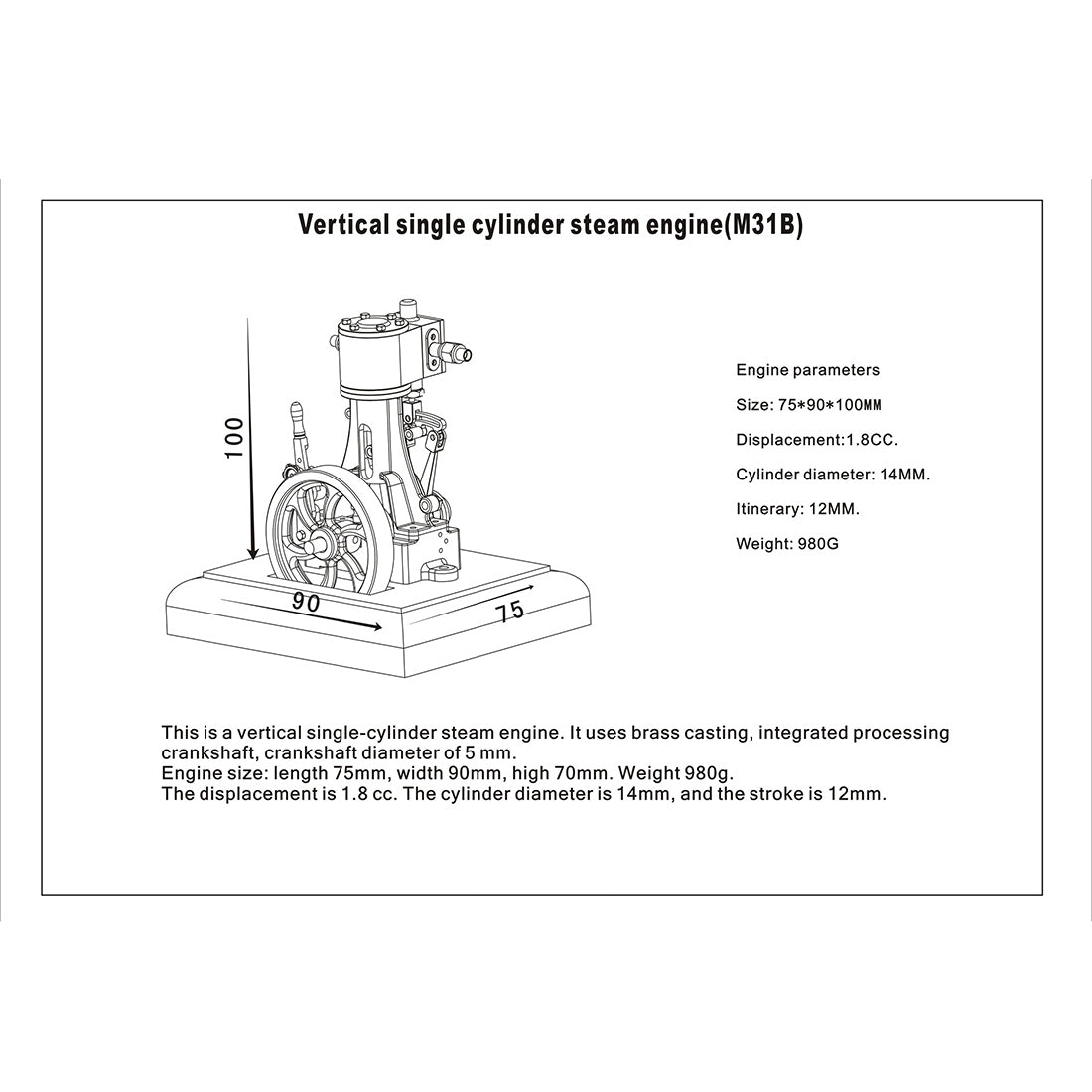

.Type: Vertical Single-cylinder Double-acting Steam Engine Model
.Recommended Air Pressure: 0.4MPa-0.6MPa
.Air Inlet Thread: 1/4-40TPI
.Product Dimensions: 11 x 9 x 10cm
.Product Weight: 1000g
.Package Dimensions: 15 x 13 x 15cm
.Package Weight: 1200g
.Packing: Carton Box
