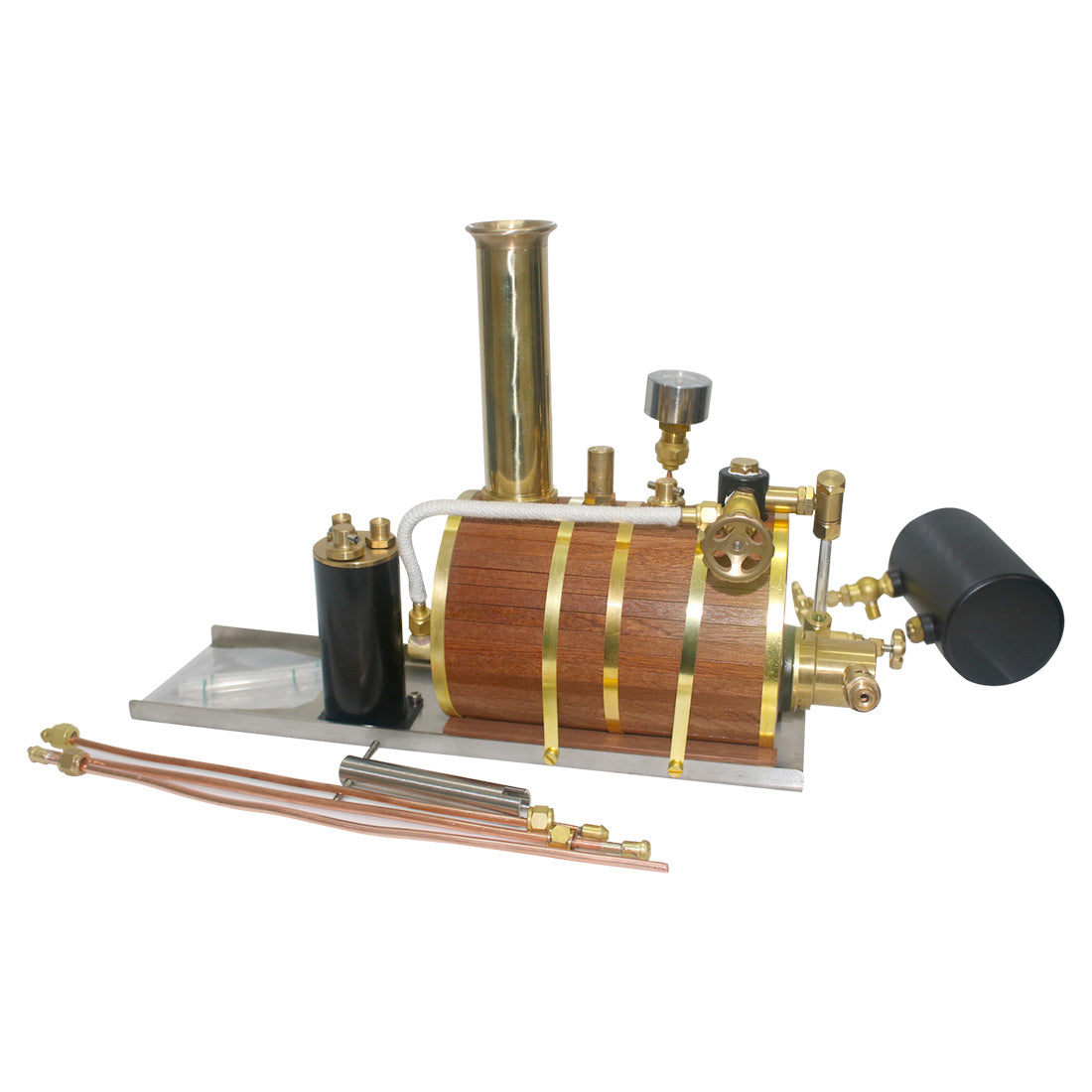

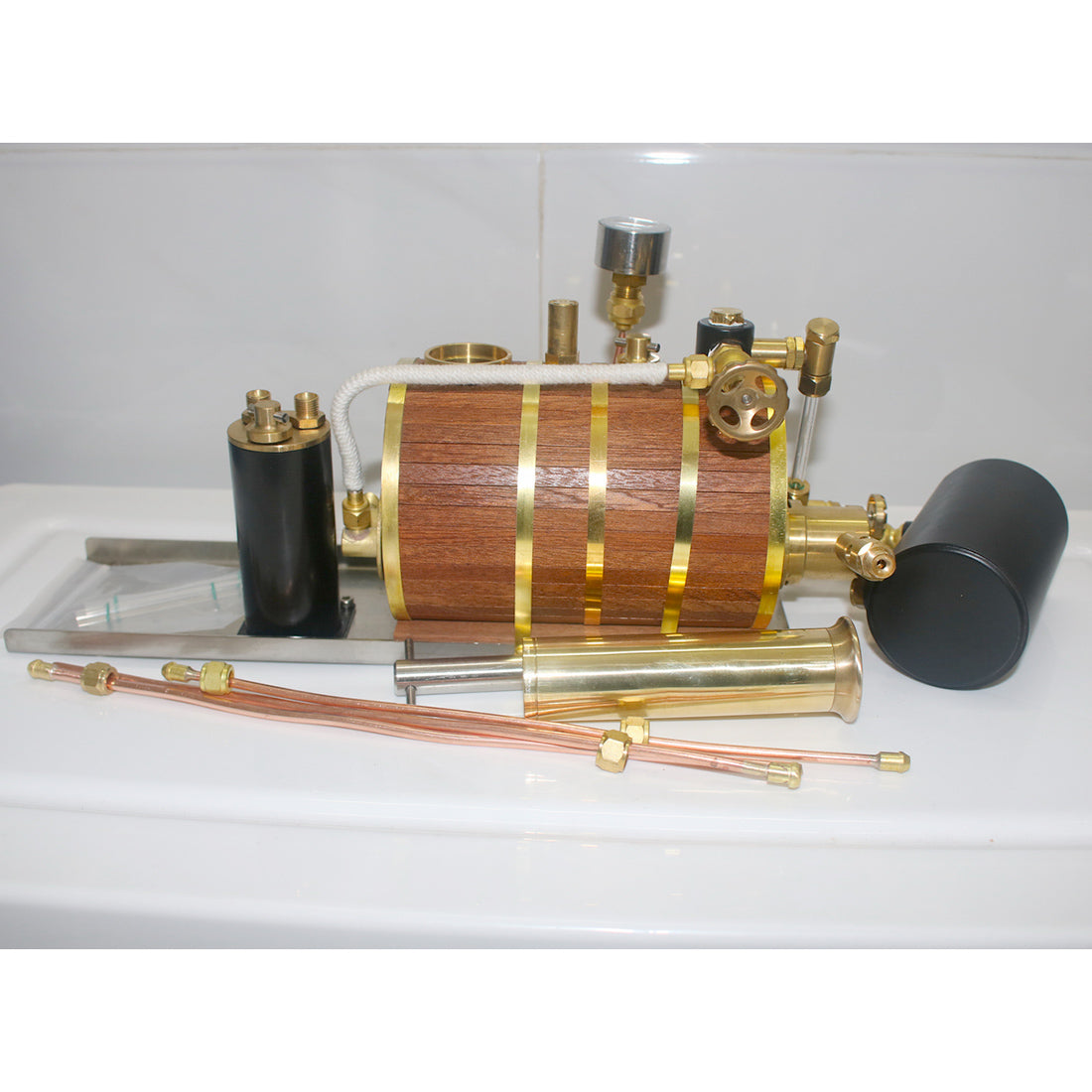

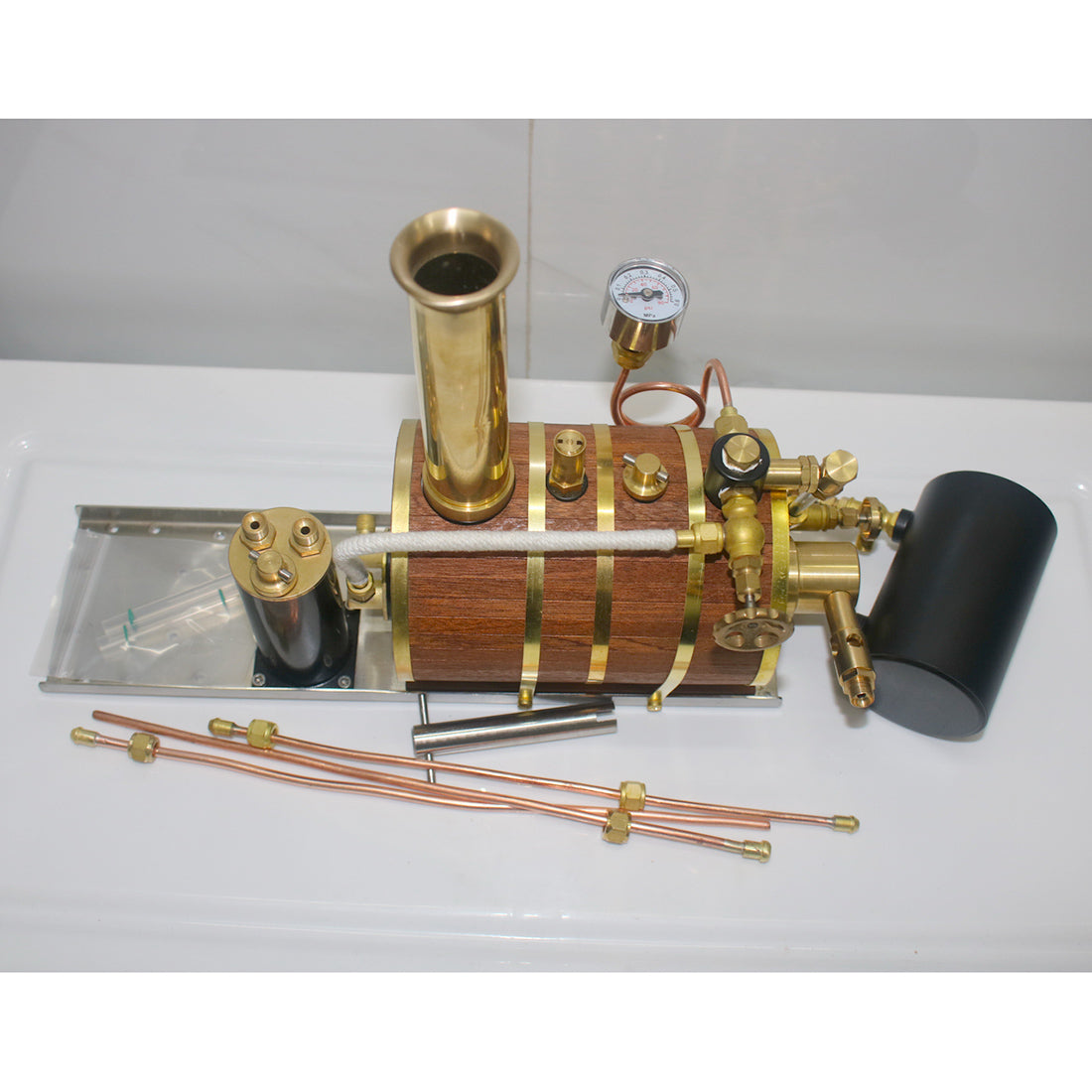

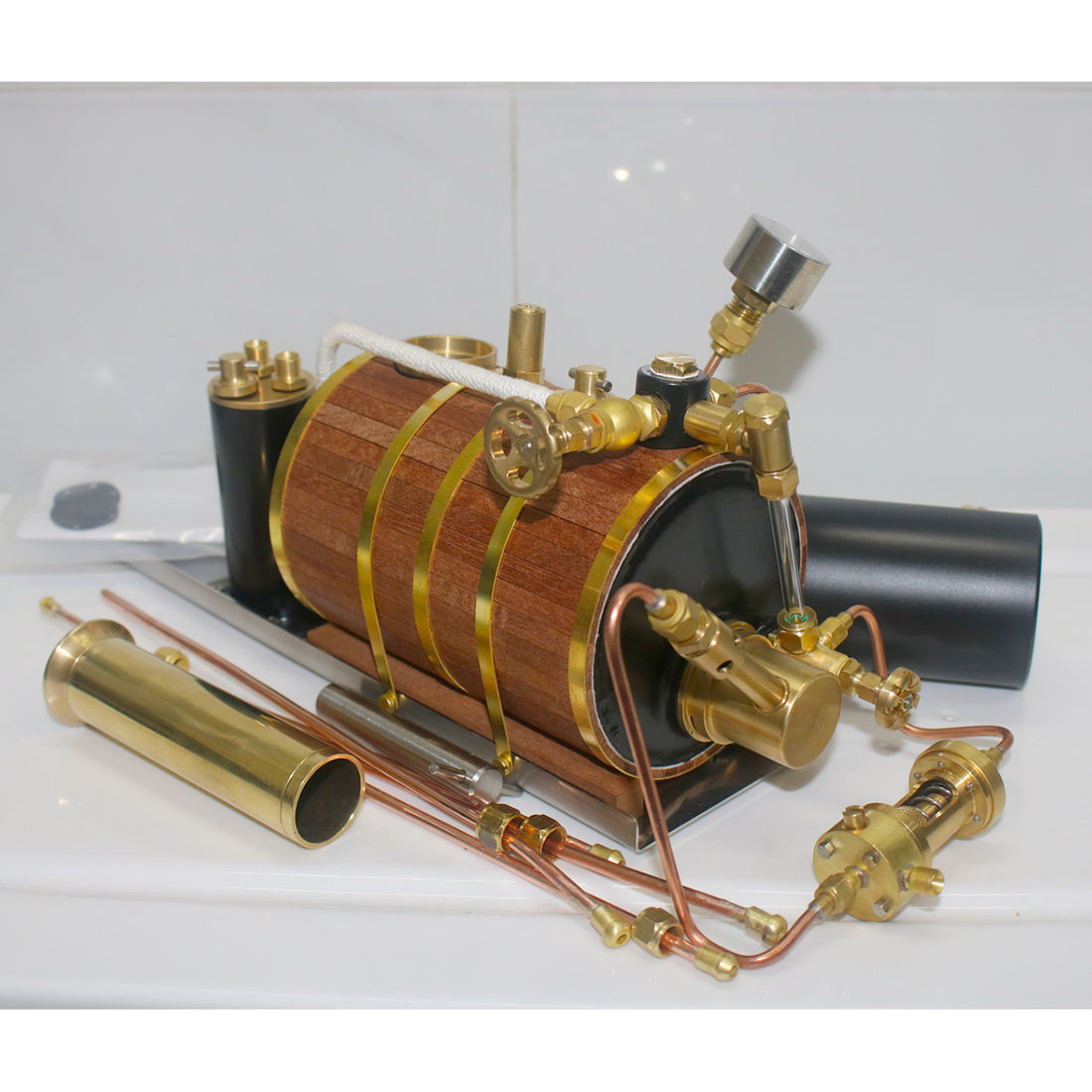

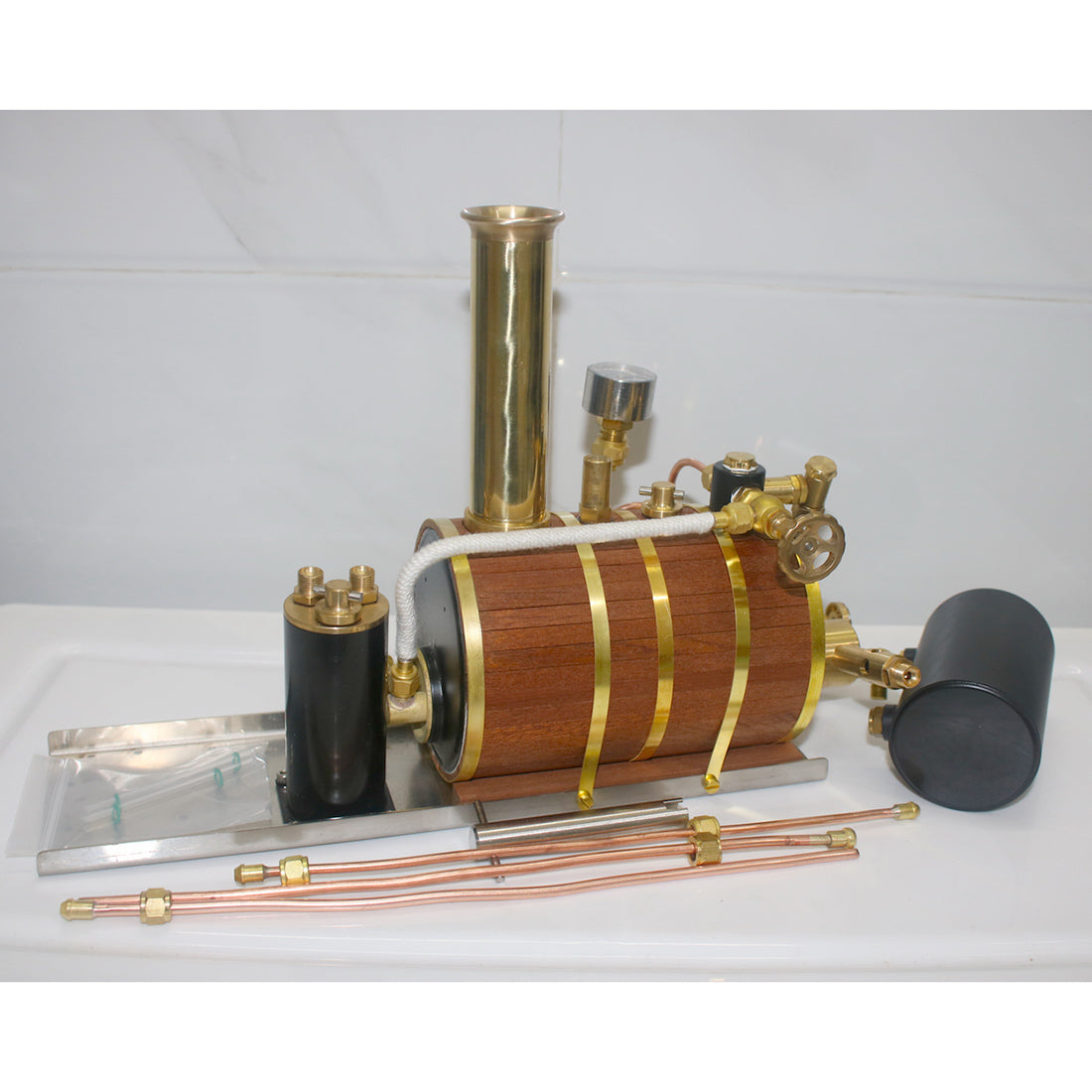

200ml Steam Boiler Model for Single/Double/Triple-cylinder Steam Engines & Model Ships

Features:


.Fully Equipped: Equipped with a pressure gauge, a main valve, a water level meter, a waste water tank, etc., the elaborate steam boiler model features outstanding appearance & reliable performance.
.Well-made: Made of pure copper, the boiler comes with mahogany on the surface for wonderful heat insulation effect. Designed with a reserved chimney interface & interfaces on each side reserved for additional accessories.
.High Efficiency: This model that won't let you down boasts a super high heat rate! Heated by combustion, the pipe allows air pressure to reach 0.4MPa in about 8min. With the pressure of 0.5MPa & maximum working time of 25min, the pressure relief valve ensures the safety in use.
.Applications: The model is a great vintage art collection for steam model enthusiasts & collectors. Suitable for 1.0-1.5m model steam boats, the model can also be used for racing boats by effortlessly driving a triple-cylinder steam engine.
.Instructions: Add water to 3/5 of the total capacity and keep the pressure at about 0.4MPa. Pay attention to the burning time (water must be added), then drain the remaining water inside after use. Used in conjunction with a quality fire control system, the use of the boiler is safer and you are able to save gas. The best fuel for the boiler is butane gas.

Specifications:

.Material: Brass + Mahogany
.Item NO.: B-1
.Outside Diameter: 80mm
.Length: 130mm
.Height: 200mm
.Weight: 1900g
.Full-load Capacity: 200ml
.Valve Pressure: 0.4MPa
.Pipe Joint: 1/4-40mm
.Age: 14+
.Product Dimensions: 13 x 8 x 20cm
.Product Weight: 1900g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 2500g
.Packing: Box

Package list:

.Boiler Model * 1
.Main Valve * 1
.Pressure Gauge * 1
.Water Level Gauge * 1
.Connecting Hose of the Butane Gas Tank * 1
.3.5mm Copper Pipe * 3
