High-precision Infrared Laser Contact Tachometer Measuring Instrument

Original price $49.99 - Original price $49.99
Original price
$49.99
$49.99 - $49.99
Current price $49.99
SKU 3415133

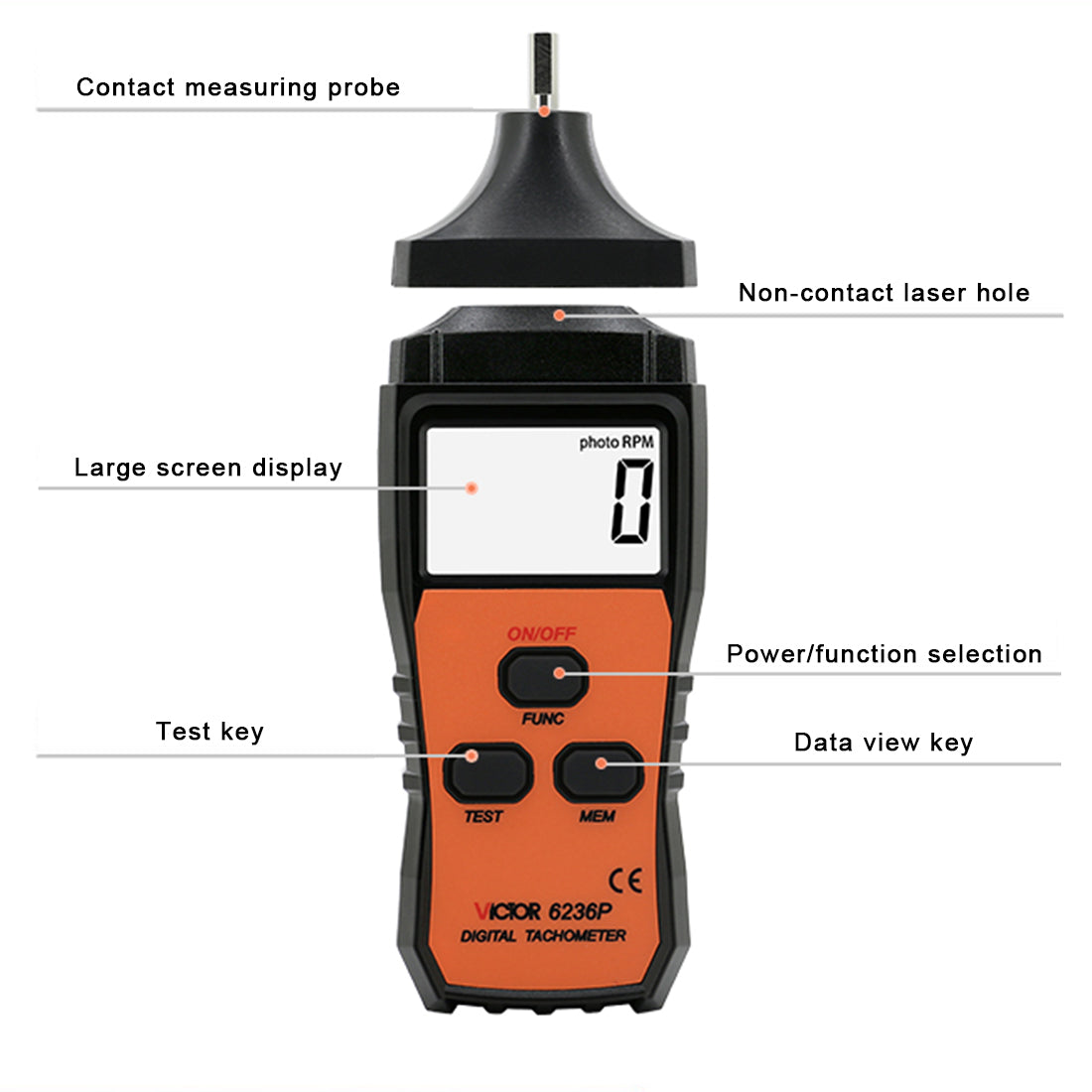

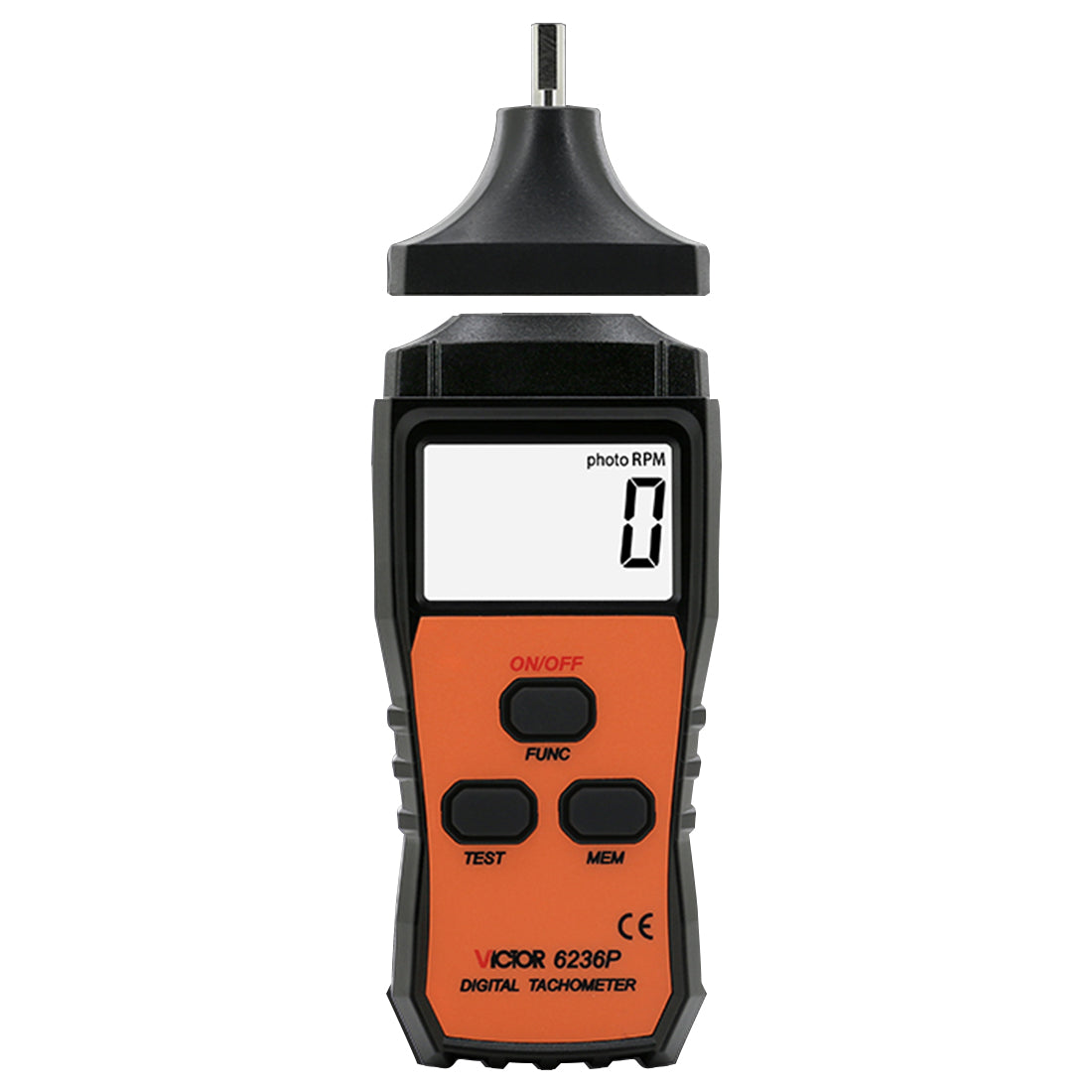

High-precision Infrared Laser Contact Tachometer Measuring Instrument

Features:

1.Non-contact using photoelectric technology design, for some fast and its can not be measured objects to detect, such as fans, motors, engines, aircraft, propellers, cars, etc., before using the reflective stickers (included with the product) to the object to be measured after running can be detected.
2. Contact to enable reliable contact between the tachometer and the measured shaft The tachometer is equipped with different contact heads (measuring line speed contact head, tacho contact head), which can be installed on the tachometer input shaft according to the object to be measured.
3. With automatic memory function, the upper limit, lower limit and last value of the data can be recorded at any time, and the test results can be produced in 1 second on average.
4. The battery can be replaced by yourself, or the shop to buy the corresponding charging device, long service life, if you do not understand the staff can consult the corresponding problems, we will care about the first time to solve your problems.

Specifications:

Material: Electronic components
Colour: As shown
Model: VC6236p
Size: 192*65*30mm
Weight: 200g
Test range: contact speed: 1-19999r/min, contact line speed: 1-1999m/min, non-contact speed: 2-99999r/min
Accuracy: 1+0.05%
Sampling time: 1s
Range selection: automatic switching
Non-contact measurement effective distance: 50-500mm
Memory function: automatic recording of upper limit value, lower limit value and last value
Time base: 4MHz quartz crystal oscillator
Display: 5 digit 16mm LCD display
Battery: 9v battery

Packing list:

Tachometer*1, contact fittings*4, reflective strip*3, battery*1, colour box*1. instruction manual*1, assembly kit*1
