Titanic Reciprocating Triple Expansion Steam Engine MOC-157380 Building Blocks Set-Build Your Own Titanic Engine-6584PCS

Titanic Reciprocating Triple Expansion Steam Engine MOC-157380 Building Blocks Set-Build Your Own Titanic Engine-6584PCS

History:

Titanic was a British royal liner and one of the three Olympic-class ships of the White Star Line, and at the time of her service was the world's largest ship at sea, built by the Belfast shipyard of Harland & Wolff, and known as the "Never Sinking". Titanic was equipped with three main engines - two reciprocating four-cylinder triple-expansion steam engines and one low-pressure steam turbine engine, each driving a propeller. the two reciprocating engines produced a total of 30,000 bhp, while the turbine engine produced 16,000 bhp. White Star Line used the same engine combination on the early passenger ship Laurentique with great success. It offers the perfect combination of performance and speed; the reciprocating engine on its own is not powerful enough to propel an Olympic-class ship at the required speed, while the steam turbine engine, while powerful enough, causes uncomfortable vibrations for passengers, a problem encountered by Crown Tat's all-turbine passenger ships, the Lusitania and the Mauretania. By combining reciprocating engines with steam turbine engines, White Star Line was able to reduce fuel usage and increase power while creating the same amount of steam.

Features:

.Authorized and designed by borysf, this model is designed base from the 1/22 scale reciprocating triple expansion steam engine of a classic ship - Titanic. Consisting of a battery box and two large XL motors, this engine perfectly reproduces the exterior colour of the steam engine and the operation of the internal steam power pack. After many revisions, this model perfectly restoring the solid product and reasonable structure, with a good building experience. The unique design and colour scheme has a very high ornamental and collection value.
.Contains 6584 premium parts made of eco-friendly ABS material in precise casting for strong tightness and stability. Besides, the premium parts, in rich colors, are free of burrs and edges, ensuring safe assembly.

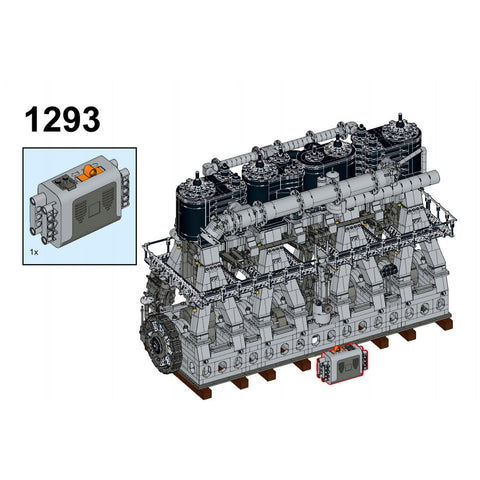

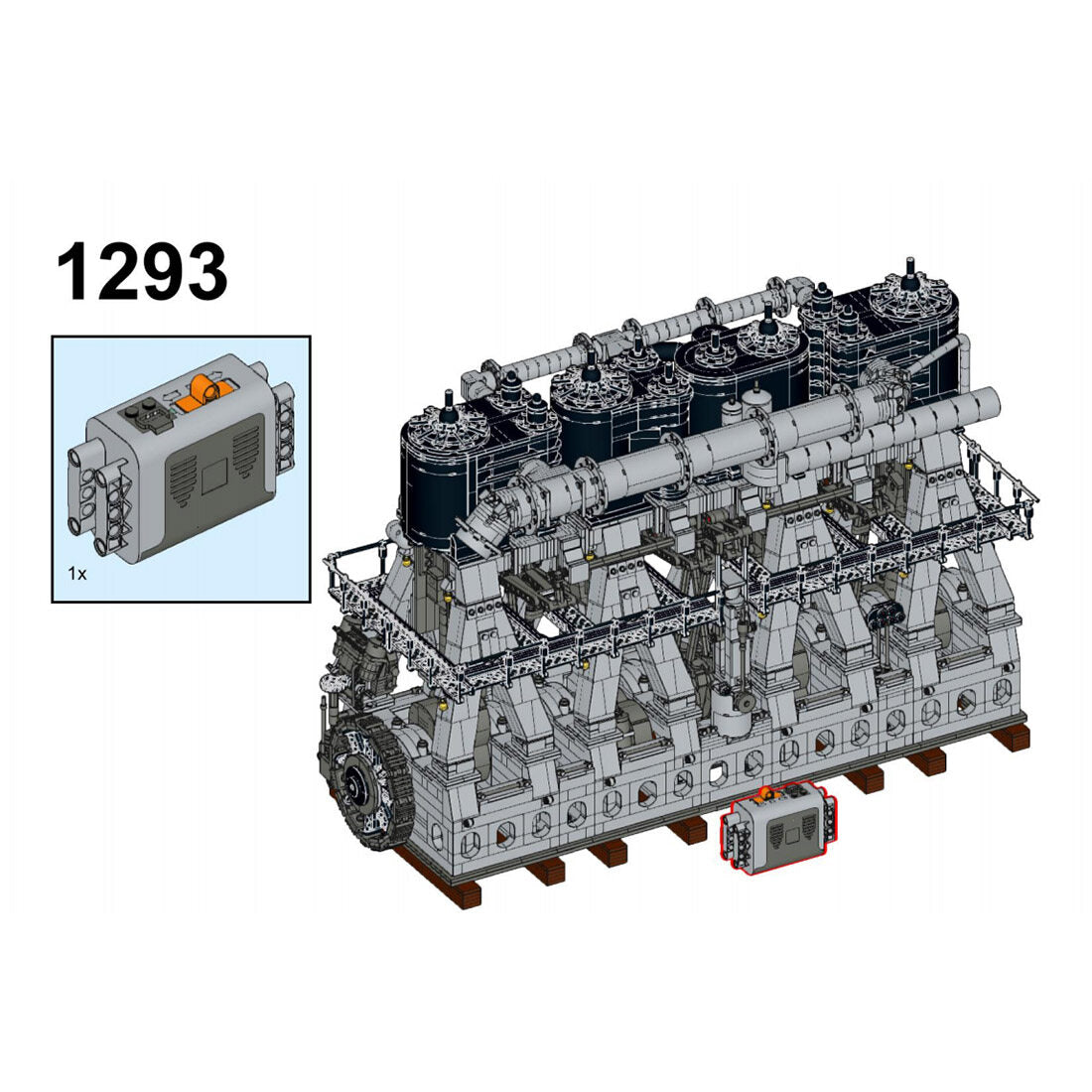

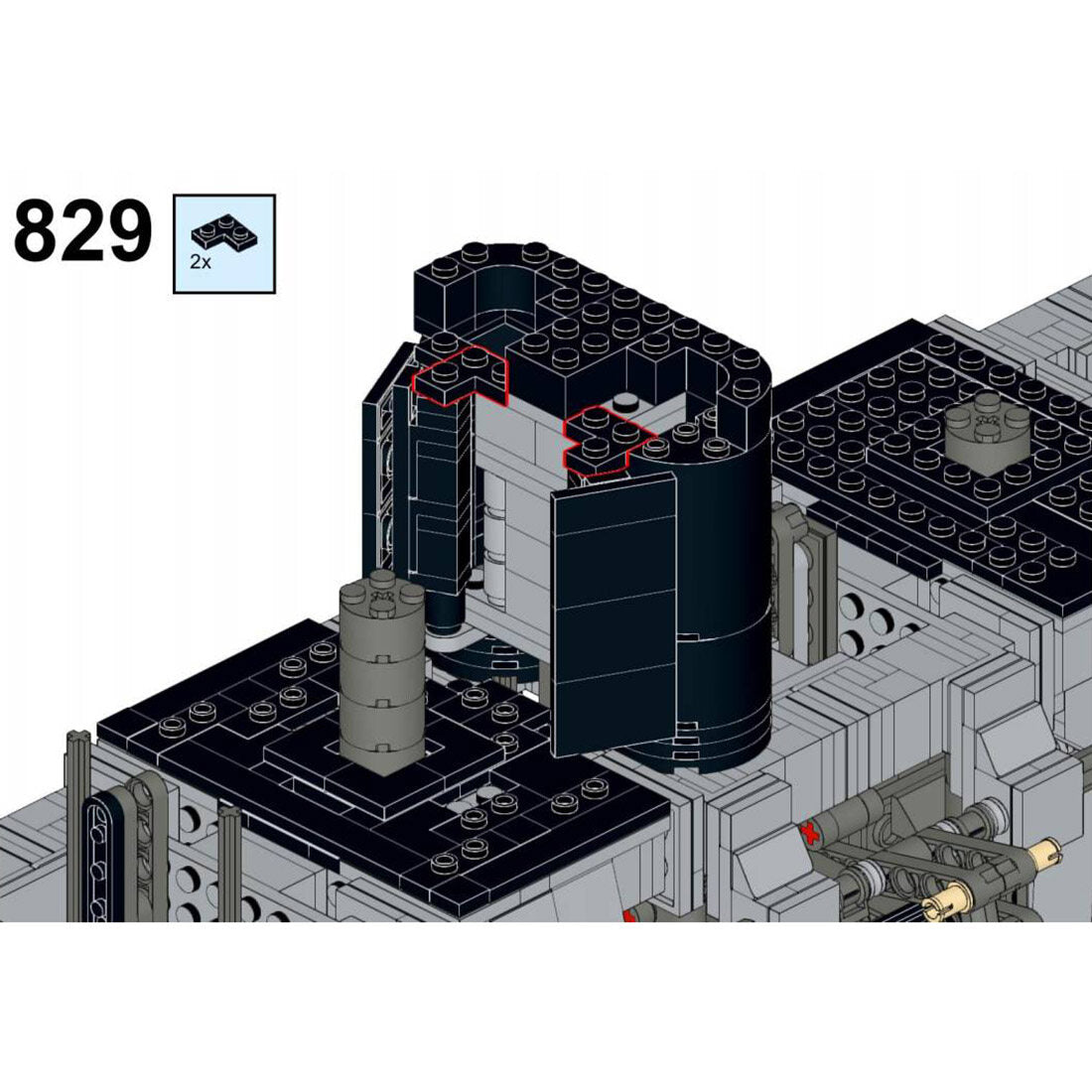

.Detailed Instructions: Comes with QR code instructions with illustrations which can be acquired by scanning with your phone. The steps are detailed and easy to understand, helping you quickly assemble.
.Value: The assembled model is a great display model and background decor for cultivating practical and thinking ability. Also the best gift for mechanical engine lovers and engine blocks enthusiasts.
.Notes: Suitable for children over 16+. Small particles are attached inside, please pay attention to the use and placement. If you encounter any problems during the assembling process, please contact us promptly.

Background：

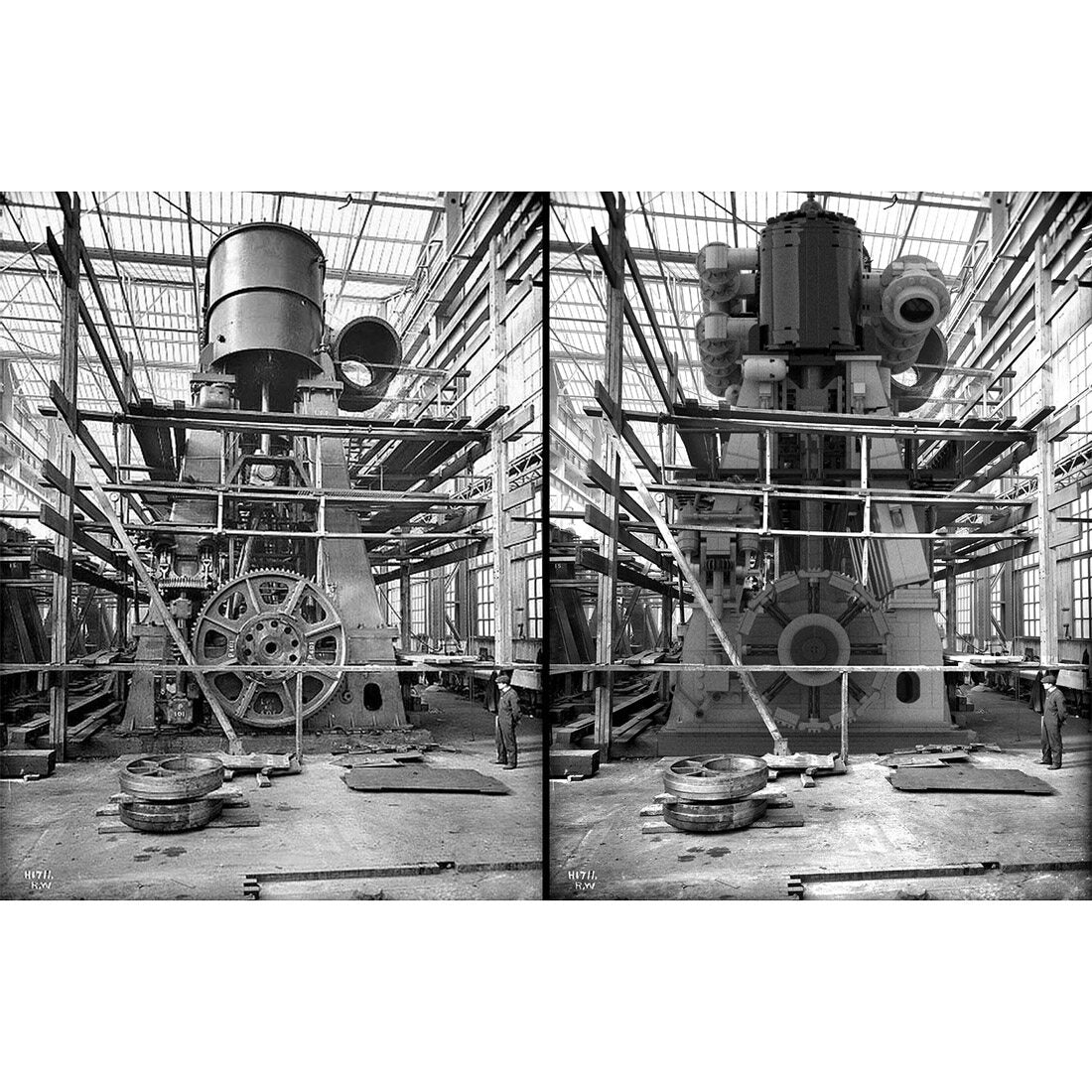

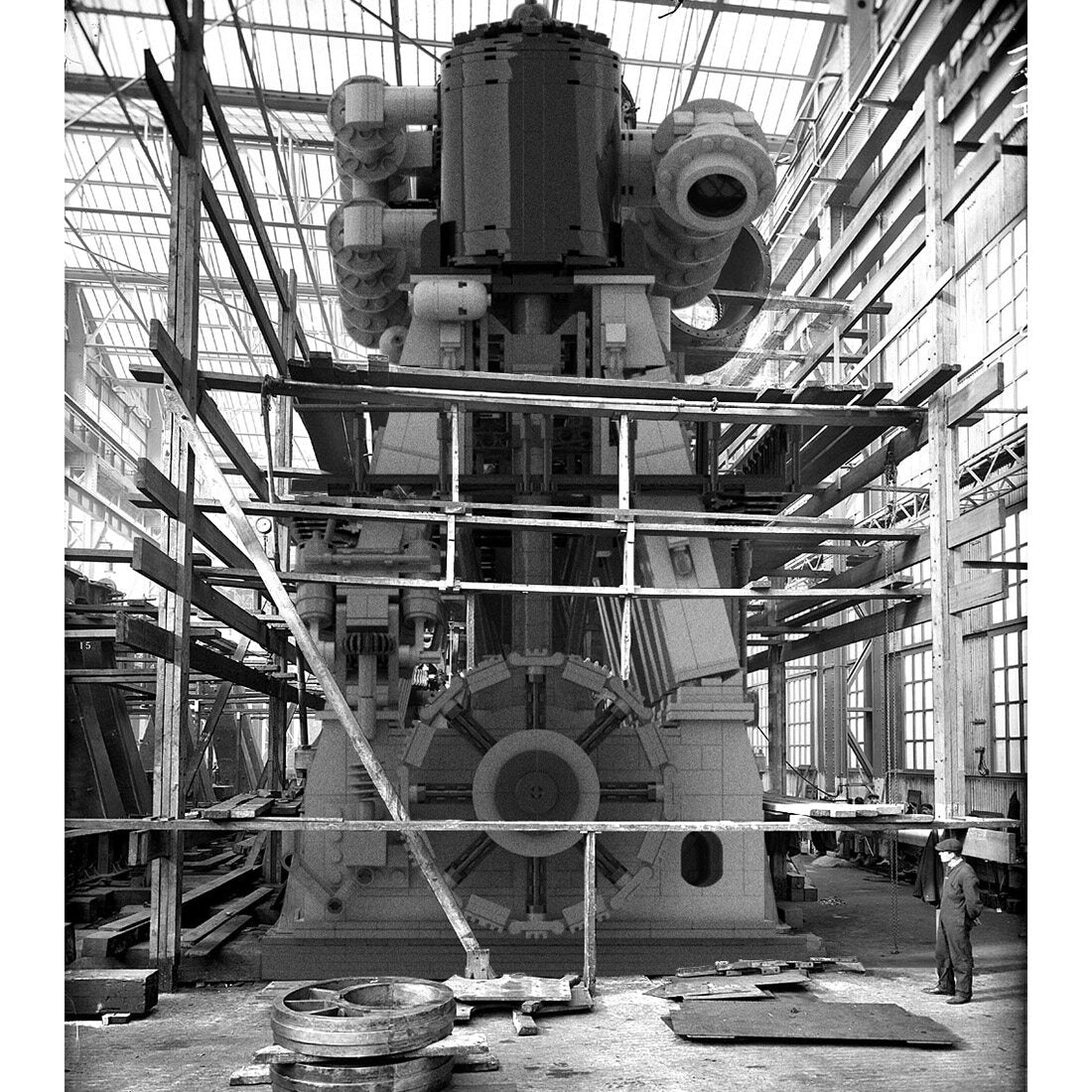

Titanic reciprocating triple expansion steam engine
Actual size: 19 meters long, weighing 731 tonnes
Base: 198 metric tons
Total output: 15,000 hp
Powered by steam generated by 29 boilers, it contains a total of 159 coal-fired furnaces. The boilers are 4.8 meters in diameter, 6.1 meters long and three stories high. Each boiler weighs 92.97 tonnes and can hold 49.28 tonnes of water.
The burning coal heats the boiler to produce steam, and 6,717 metric tons of coal are stored in the coal bunker.

Design:

The excess steam from the reciprocating engines is then fed to the steam turbine engines located at the stern, where the vapour passes through a face condenser to increase the efficiency of the turbines, and the steam can be condensed back into the water for reuse. The power generated by these engines is output directly on the propeller drive shafts; there are three propellers, one driven by each engine; the port and starboard flank propellers are the largest, each carrying three manganese-copper alloy blades with a diameter of 7.01 meters. The centre propeller, on the other hand, carried 3 manganese-copper alloy blades (unlike the Olympic, which had 4 blades, and is often confused by many) and was 5.18 meters in diameter, but it could not be reversed. The Titanic was fitted with power generation equipment that produced more electricity in the same amount of time than the average urban power plant of the time. Immediately behind the steam turbine engines were four 400,000 watt steam-driven generators to power the ship, and two 30,000 watt auxiliary generators for emergencies[101] which were located at the stern of the ship and were still running to supply power in the last few minutes before Titanic's sinking

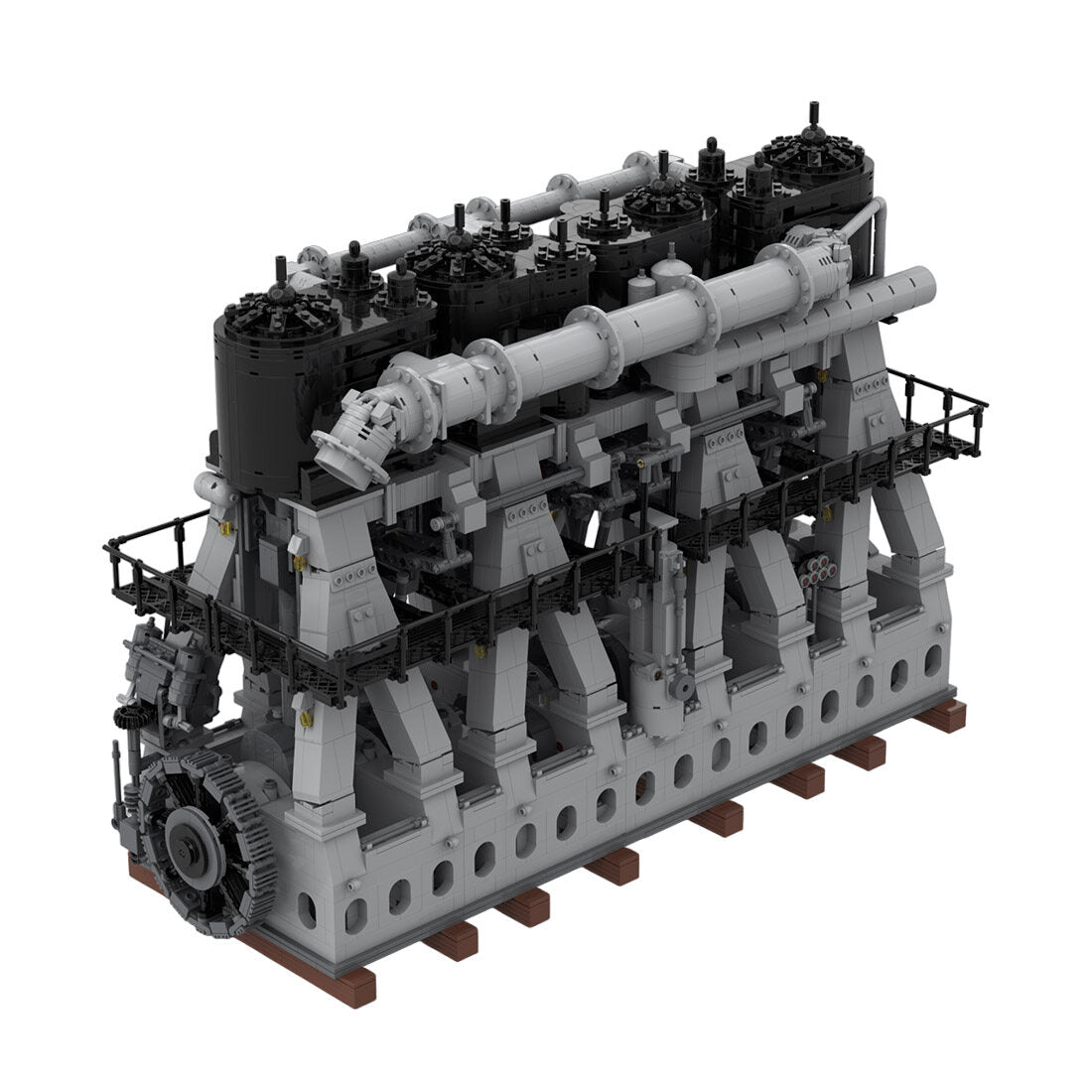

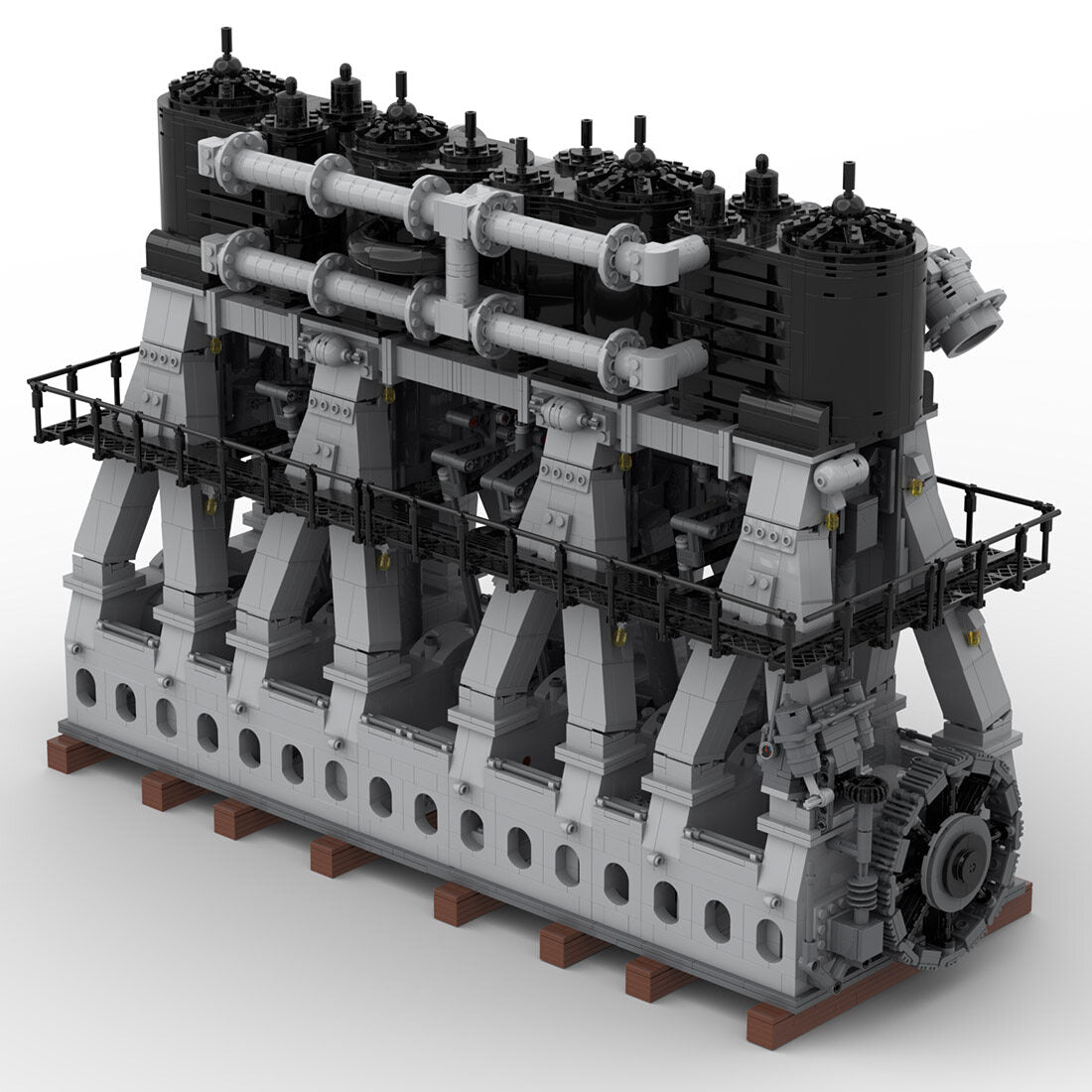

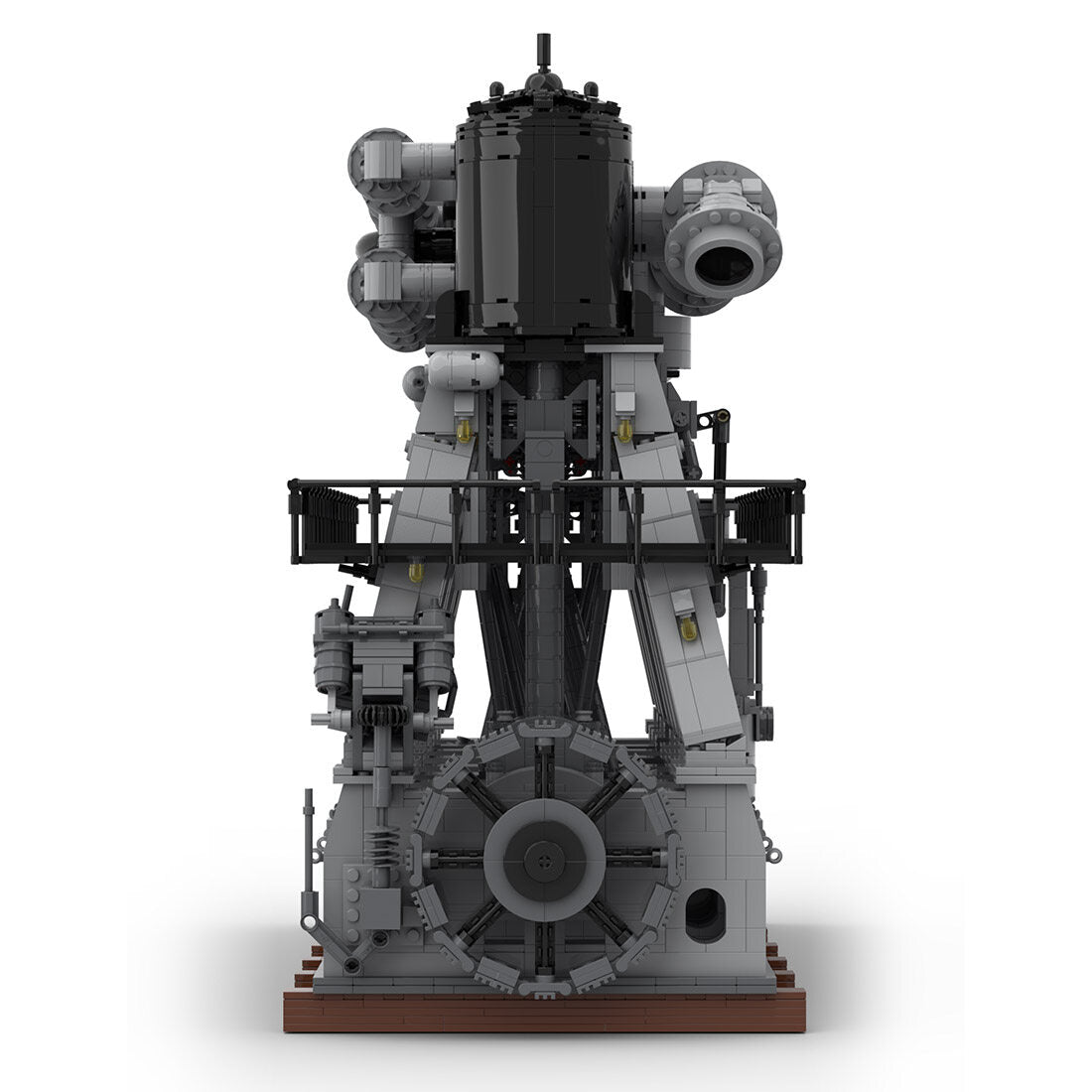

The model is highly detailed, which includes:

Overall Look - every detail, that could be designed with bricks, has been reproduced
Rotating crankshaft with moving pistons, eccentrics and valves (powered by two electric motors)
Working reversing engine (Brown's engine & valve gear)
Working turning engine (manually)
Main piping
Catwalks

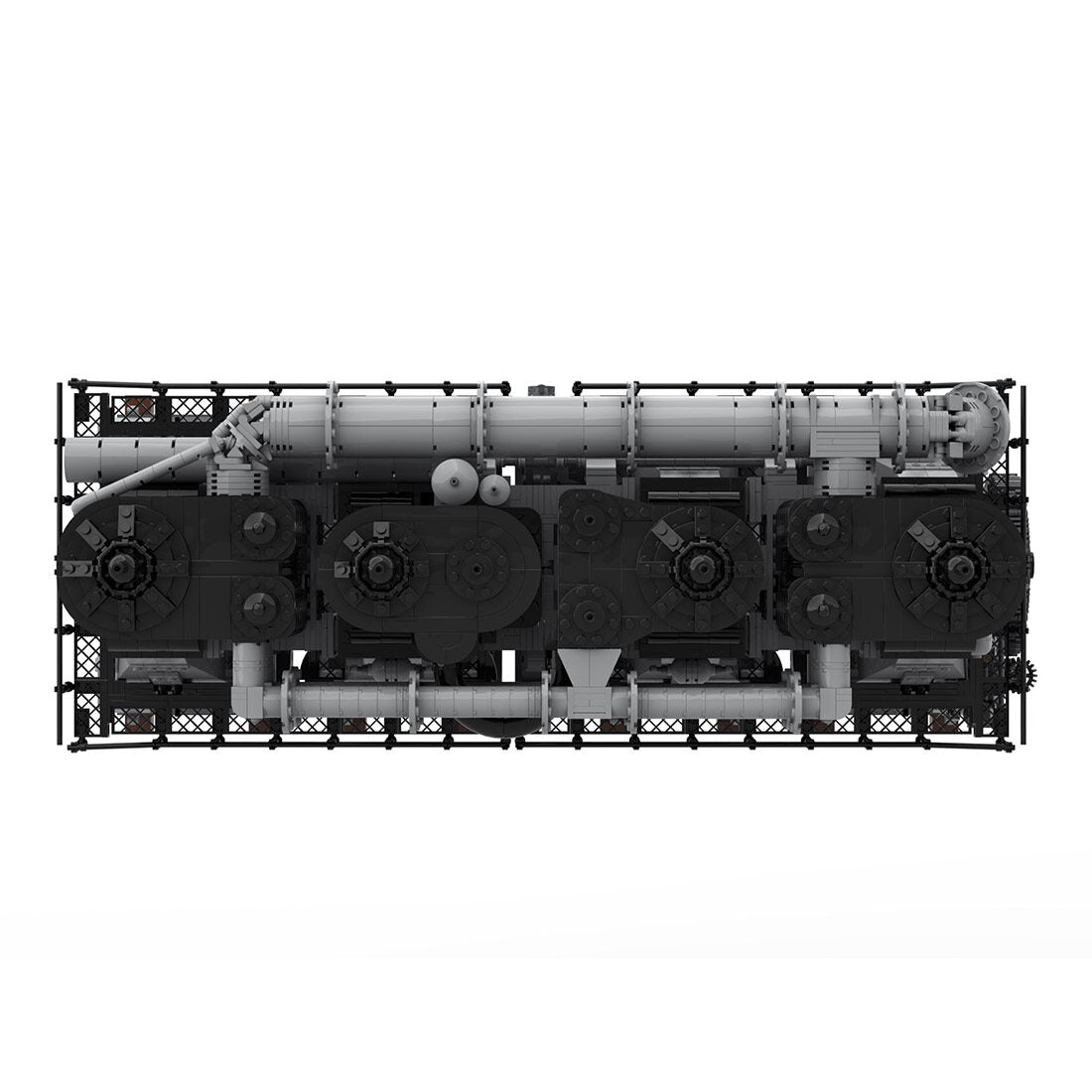

Four individually shaped cylinders with detailed covers

Specifications:

.Material: ABS
.Product Weight: 6500g
.Product Dimensions: 56.5 x 21 x 40.5cm
.Package Weight: 7200g
.Package Dimensions: 48 x 35 x 10cm
.Packing: Graphic Carton
.Ages: 16+

Package Content:
.Building Blocks Set *1
.XL Large Motor *2
.Battery Box *1
